A question plumbers often ask us is the difference between Standard and Barrier pipe. Our push-fit plastic plumbing system Hep2O is available in straight lengths or coils in both Standard and Barrier pipes.
How is straight pipe available and when should you use it?
Straight lengths of Hep2O Standard and Barrier pipe are supplied in metric 15mm, 22mm, 28mm and imperial 1/2" , 3/4" and 1" diameters. Straight pipe is just as flexible as coiled pipe and is primarily intended for exposed pipework where neatness is vital or where only a short length of pipe is required.
The difference between Polybutylene (PB) and Cross-linked Polyethylene (PEX) pipe
There are two main pipe materials on the market, Polybutylene (PB) and Cross-linked Polyethylene (PEX) and
both have different properties.
PEX pipe is relatively stiff and when taken from the coil retains a ‘spring-like quality, which can make it diffi
cult to work with, particularly on long runs and when cabling through joists or
floors.
Polybutylene, in comparison, is cured on massive drums, and the plastic memory means that when you uncoil it lays flatter, as seen in the image below. It’s also very flexible, so easy to work with in all situations. Hep2O pipe is all PB.
What’s the benefit of Hep2O pipe coils?
A unique characteristic of Hep2O pipe coil is its remarkable ability to remain straight once uncoiled, unlike some other plastic materials which act like a spring and makes handling so awkward that two men may well be required to carry out a relatively simple job. Hep2O pipe is much easier to handle and much easier to cable because of its inherent tendency to stay where it’s put.
Coiled Hep2O pipe is supplied in 15mm, 22mm, 28mm and 1/2", 3/4" and 1" diameters, in a SmartPack™ dispenser.
- Choice of Standard or Barrier pipe
- Uncoiled pipe retains its flexibility

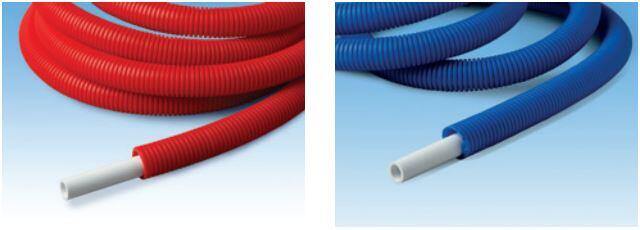

- For installations into screed, use the Hep2O ‘Pipe-in-Pipe’ system. This incorporates Hep2O Barrier pipe in a pre-sheathed conduit as seen below.
Features of standard pipe
- Suitable for domestic hot/cold water and heating applications
- When used for heating, a suitable inhibitor such as Sentinel or Fernox MB1 should be used
Features of barrier pipe
- Designed for central heating systems
- Incorporates an oxygen barrier to inhibit oxygen permeation
- Use of inhibitors is recommended as corrosion can occur in all types of the system regardless of pipe material
- It may also be used for domestic hot and cold water services
Note: Hep2O pipe is NOT suitable for conveying gas, oil or underground supplies.
